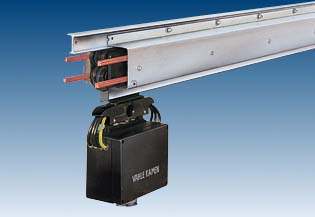

LSV and LSVG are compact and safe conductor lines with aluminium housing. These systems are ideal for indoor and outdoor use, for all types of installations like cranes, monorails, hoists, power tools, machine tools, storage and retrieval systems, and many other mobile machinery applications. They are especially well suited for higher ambient temperatures. The systems can be supplied with 4 - 11 conductors rated from 60 up to 300 Amp. The housing consists of two prefabricated profiles.The polarizing long and short lip profiles prevent accidental reversal and avoid phase reversing of current collectors. An anodized finish is available for aggressive site conditions. Standard lengths are 1 / 2 / 3 / 4 m. Cat. 3a

SLG and HSL are robust, steel enclosed conductor lines for high electrical loads and for higher ambient temperatures. They are suited for indoor and outdoor installations, for medium and heavy duty crane runway and bridge electrification, for monorail systems in harsh environment, and many other applications. The housing can be fitted with 4-7 conductors, rated between 80 - 300 Amp. The housing consists of two prefabricated galvanized steel profiles which are bolted to a top bar. The polarizing long and short lip profiles prevent accidental reversal and avoid phase reversing of current collectors. Standard sections are 4 m long. Cat. 3b

Coductor systems	Type	Number of conductors	Ampacity [A] at 80 % duty factor / 35° C	max. voltage [V]
	LSV	4 - 5 6 - 7	60 - 300 60 - 200	600 600
	LSVG	6 - 8 9 - 11	60 - 300 60 - 200	600 600
	SLG	4 - 7	80 - 300	750
	HSL	4	120 - 200	600
