Spring Operated Cable Reels
 |

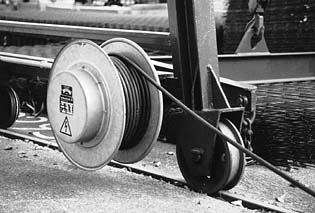

VAHLE Spring Operated Cable Reels serve
for automatic winding of flexible power and control cables, hoses for
gases and liquids. Typical application: Portal- and Gantry Cranes,
Dockside-Ships- and Construction Cranes, Graps and Magnets, Electric
Hoists and other material handling equipment etc.
Cat. 9a
|
General
- All cable reels correspond to the running VDE and accident prevention regulations.
- Sliprings are rated for 500 V (AC ) and 600 V (DC ) and 100 % ED.
- Slipring housing covered to IP 54, higher protection grades on request.
- Everage life time of helical drive springs: 100.000 working cycles.
- Limit switches are available.
- All steel parts of cable reels VLF 146 - VLF 530 are galvanized. All
other reels come with one primer coat and one finish paint of
epoxy-resin RAL 7031 blue-gray varnish.
- max. travelling of lifting speed: 60 m / min.
- max. travel / lift accelearation a = 0,2 m/sec²
